Duplex Butterfly Winding Machine Explained: What It Is, How It Works, and Why It Matters in Modern Coil Production

In the rapidly growing electronics manufacturing industry, Winding Machine technology plays a key role in producing inductors, transformers, sensors, and other electromagnetic components. Among these machines, the Duplex Butterfly Machine has become a highly efficient solution for high-volume coil production due to its dual-station design and stable precision control.

The Duplex Butterfly Machine developed by Chi Keung is widely used in industrial coil manufacturing, especially in applications requiring consistent quality and fast production cycles. It represents a modern upgrade from traditional single-station winding systems.

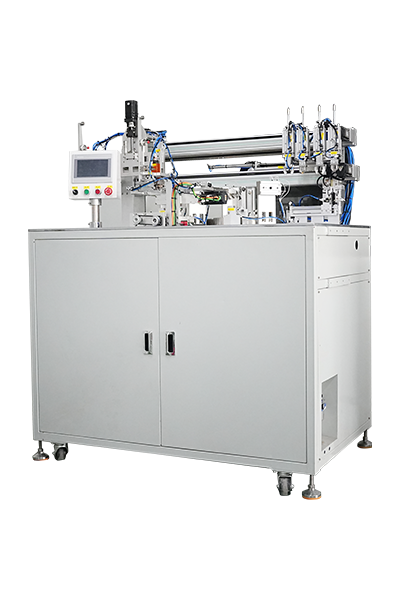

What Is a Duplex Butterfly Machine?

A Duplex Butterfly Machine is an automated Coil Winding Machine designed with two independent winding stations. This allows the machine to process two coils simultaneously, either producing identical parts or different specifications at the same time.

Compared with a standard winding machine, the duplex design significantly increases production efficiency while maintaining high precision and stability.

This type of equipment is widely used in:

• Inductor coil production

• Transformer winding

• Relay coil manufacturing

• Sensor coil processing

• High-frequency electronic components

Why It Is Called a “Butterfly Machine”

    The term “butterfly” comes from the machine’s winding motion structure, where the wire guide moves in a controlled arc-like motion similar to butterfly wings. This enables precise wire placement during high-speed winding.

This motion control system ensures:

• Even layer distribution

• Stable coil geometry

• Reduced wire stress

• High repeatability

This is especially important in winding machine applications where micron-level consistency affects final electronic performance.

Working Principle of Duplex Butterfly Winding Machine

The working principle of the Duplex Butterfly Machine is based on CNC-controlled servo systems combined with automatic tension control.

Step 1: Parameter Setting

Operators input winding parameters such as:

• Wire diameter

• Turns count

• Speed

• Layer structure

Step 2: Dual-Station Operation

The machine operates two independent stations:

• Station A winds coil 1

• Station B winds coil 2

Both stations can run simultaneously.

Step 3: Servo Motor Control

High-speed servo motors control:

• Rotation of the bobbin

• Wire feeding direction

• Precise layer alignment

Step 4: Tension Control System

An automatic tension system ensures the wire remains stable throughout the winding process, preventing deformation or breakage.

This is what makes the Duplex Butterfly Machine highly reliable in mass production environments.

Duplex vs Single Station Winding Machine

In modern production lines, manufacturers often compare duplex systems with single-station equipment.

Single Station Winding Machine

• One coil per cycle

• Lower cost

• Suitable for R&D or small batches

Duplex Butterfly Machine

• Two coils simultaneously

• Higher efficiency

• Ideal for mass production

According to industry analysis, duplex systems can significantly improve output efficiency while maintaining consistent coil quality in industrial manufacturing environments.

Why Winding Machines Are So Important in Electronics

A winding machine is essential because most electronic components rely on electromagnetic induction.

Typical applications include:

• Power transformers

• EMI suppression coils

• Current sensors

• Automotive electronics

• Charging systems

Without precise winding, the performance of these components would be unstable or inefficient.

Modern automation also improves:

• Production speed

• Consistency

• Material utilization

• Cost efficiency

Key Advantages of Duplex Butterfly Machine

The Duplex Butterfly Machine offers several industrial advantages:

1. High Production Efficiency

Dual stations double output capacity compared to single-station systems.

2. Stable Precision Control

CNC control ensures accurate winding structure and consistent coil performance.

3. Reduced Labor Cost

Automated operation minimizes manual intervention.

4. Flexible Production

Supports multiple coil specifications on the same machine.

5. Industrial Scalability

Suitable for both medium and large-scale manufacturing environments.

Application Industries

The demand for advanced winding machine technology is growing in multiple sectors:

• Consumer electronics

• Automotive electronics

• Communication systems

• Industrial automation

• Medical devices

• Power supply systems

These industries require high reliability and consistent electromagnetic performance, making duplex systems increasingly important.

About Chi Keung Winding Technology

Chi Keung specializes in automated coil winding equipment, including:

• Duplex Butterfly Machine

• Single Station Butterfly Machine

• Common Mode Winding Machine

• Differential Mode Winding Machine

Their equipment focuses on precision coil production for modern electronic applications.

More information can be found here:
https://www.chikeunginductors.com/products/duplex-butterfly-machine/

Conclusion

The Duplex Butterfly Machine represents an advanced evolution of the traditional winding machine, combining dual-station efficiency with CNC precision control. As demand for inductors, transformers, and electronic components continues to grow, such machines are becoming essential for high-volume, high-precision manufacturing.

With its ability to improve productivity while maintaining stable coil quality, the duplex system is becoming a core solution in modern electromagnetic component production.
