Differential Mode Winding Machine: Guide to Heavy Wire Inductor Automation

Winding heavy gauge copper wire on Differential Mode inductors poses severe mechanical challenges, including conductor springback, enamel stripping, and core cracking. For energy storage, photovoltaic, and high-current power supply manufacturers, an automated Differential Mode Winding Machine must deliver substantial torque, precise wire flattening, and adaptive tension. This guide examines the essential engineering capabilities required to achieve repeatable, high-yield differential inductor production.

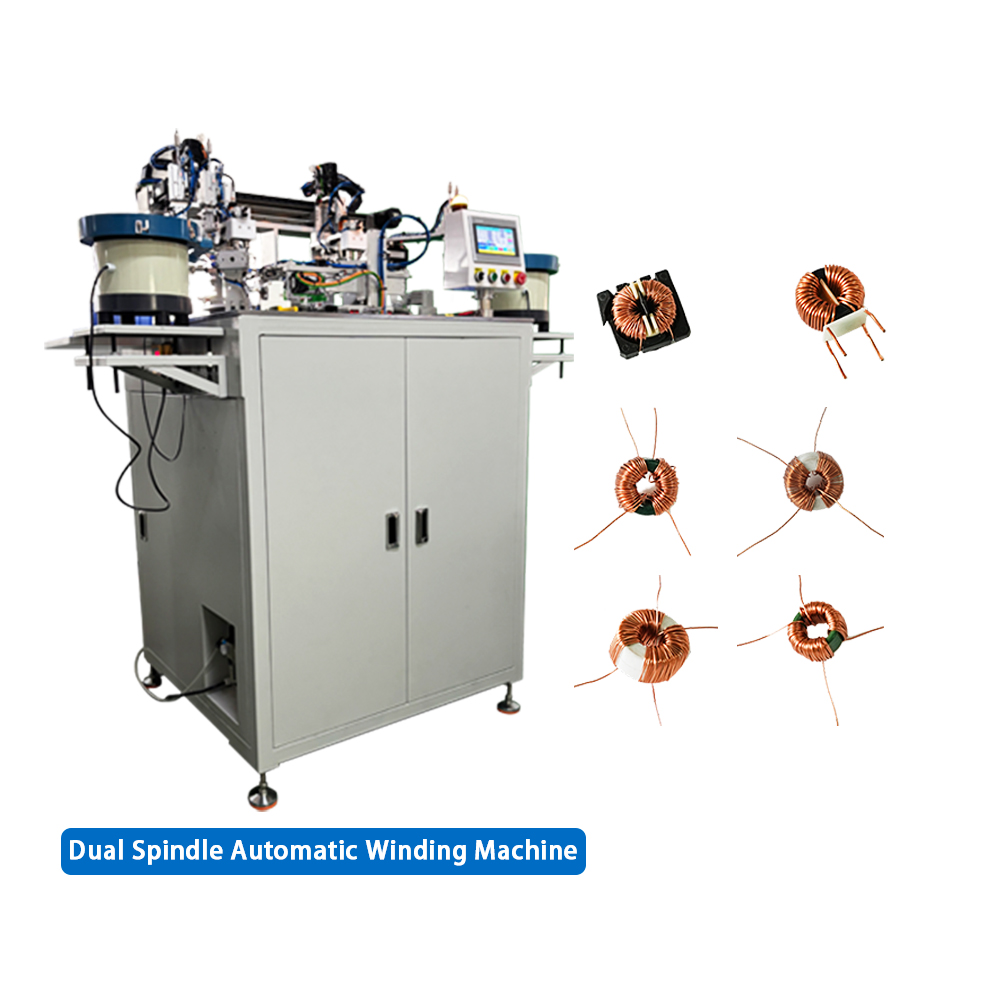

1789725585980551

Differential Mode vs. Common Mode: Why Winding Demands Differ

Unlike common mode chokes that emphasize two-wire symmetry on ferrite rings, differential mode inductors prioritize high saturation current, thicker copper wire, and dense core utilization. These physical requirements demand specialized machine kinematics.

Process Challenge	Underlying Physical Cause	Machine Design Requirement
Heavy Wire Springback	Thick round or flat wire (>1.0mm) resists tight radius bending.	High-torque servo spindle paired with rigid pre-forming wire clamps.
Sendust / Powder Core Fragility	High clamping pressure causes micro-fractures in composite cores.	Polyurethane-faced universal rotating clamp jaws with adjustable pressure.
Tight Window Space	Inner diameter shrinks as multiple heavy-wire layers build up.	Slim-profile gear or belt shuttle with smooth pass-through clearance.
Operator Fatigue & Injury	Manual bending of thick wire leads to ergonomic fatigue and inconsistency.	Fully automated wire pulling, traversing, and indexing.

Customization Support: Chi Keung develops dedicated tooling fixtures based on your core geometry (Sendust, Kool Mμ, Iron Powder, Fe-Si-Al). Request a custom tooling assessment to verify machine fit for your thick wire specifications.

Essential Machine Specifications for Thick Wire Production

1. Heavy-Duty Shuttle Mechanism

The wire storage magazine (shuttle) must accommodate sufficient copper wire length without deformation. Hardened tool steel shuttles with polished tungsten carbide eyelets prevent premature wear when guiding thick magnet wire.

2. Programmable Pitch Control and Reciprocating Layers

When winding multiple layers on a sendust toroid, wire crossing creates hot spots and insulation degradation. The machine’s CNC controller must provide precise pitch adjustment per layer to maintain neat, overlapping passes.

3. Pneumatic Assist and Automatic Wire Trimming

Handling heavy gauge lead wire requires auxiliary pneumatic arms to pull remaining lead lengths through the core safely, preventing manual intervention during the final turns.

Manufacturer Capability Evaluation Matrix

Ensure your machinery partner provides full-lifecycle support from prototyping to multi-shift factory operation.

Capability Criterion	Standard Machinery Trading Company	Chi Keung Technology Standard
Tooling Customization	Only standard shuttles; cannot adapt to irregular core profiles.	In-house custom tooling designed from customer 3D coil models.
Availability & Uptime	Unverified; frequent jamming under high-tension loads.	>95% production availability under standard operating parameters.
Cooperation Models	Equipment sale only; high upfront capital barrier.	Equipment purchase, machine leasing, or subcontract winding services.
Technical Training	Basic manual; no remote video diagnostics.	Operator training, stored parameter management, and lifetime technical support.

Pre-Inquiry Engineering Checklist

Before requesting a proposal for a Differential Mode Winding Machine, assemble your engineering criteria:

Input Data	Specification Details	Notes for the Machine Builder
Core Material & Size	OD x ID x Height (mm) and material permeability	Indicate if core is coated or requires protective plastic casing.
Wire Gauge / Cross Section	Round wire diameter (mm/AWG) or rectangular profile	Helps specify shuttle thickness and wire guide groove radius.
Winding Pattern	Single-layer continuous, multi-layer, or sector	Determines program stepping and indexing pitch.
Sample Verification	Available raw core and wire for trial run?	Ensures verified cycle time prior to machine shipment.

View our Differential Mode Winding Machine (ZQRX-C1-003) to explore specifications, or submit your coil drawing to our engineering department for a detailed feasibility quote.
