Understanding the Difference Between Common Mode and Differential Mode: Comparison and Applications

In the world of electronics and signal processing, Common Mode and Differential Mode are two fundamental concepts that play crucial roles in circuit design, electromagnetic compatibility (EMC), and filtering techniques. Understanding their distinctions and applications helps engineers optimize system performance, reduce noise, and ensure regulatory compliance.

What Is Common Mode?

Common mode refers to a situation where two or more signals share the same voltage potential with respect to a common ground. In this mode, the signal or noise appears identically on two lines. For example, in a twisted-pair cable, a common mode signal occurs when both wires carry the same voltage relative to ground.

Common Mode Characteristics:

• Same signal appears on both lines

• Reference is ground

• Often caused by external interference or grounding issues

• Can introduce electromagnetic interference (EMI)

What Is Differential Mode?

Differential mode signals are equal in magnitude but opposite in polarity across two lines. This is the intended method of transmitting signals in balanced systems such as Ethernet or RS-485. Differential signaling is less susceptible to noise and provides better signal integrity over long distances.

Differential Mode Characteristics:

• Signals are mirrored in polarity

• Reference is the opposite conductor

• Excellent noise immunity

• Ideal for high-speed, long-distance communication

Key Differences: Common Mode vs. Differential Mode

Common Mode Applications:

• EMI Filtering: Common mode chokes are used to suppress noise signals common to both lines, especially in power supplies and AC input lines.

• Power Line Communications: Helps to prevent common mode signals from radiating unwanted emissions.

• USB/Ethernet EMI Reduction: Applied in signal interfaces to comply with EMC standards.

Differential Mode Applications:

• High-Speed Data Transmission: Differential pairs are the backbone of protocols like USB, HDMI, LVDS, CAN, and RS-485.

• Audio Equipment: Balanced audio lines use differential signaling to minimize hum and interference.

• Switch Mode Power Supplies (SMPS): Differential filters block switching noise between line and neutral.

Role of Inductors and Filters in Common vs. Differential Mode

To manage signal integrity and reduce noise, specialized components are used in circuit design:

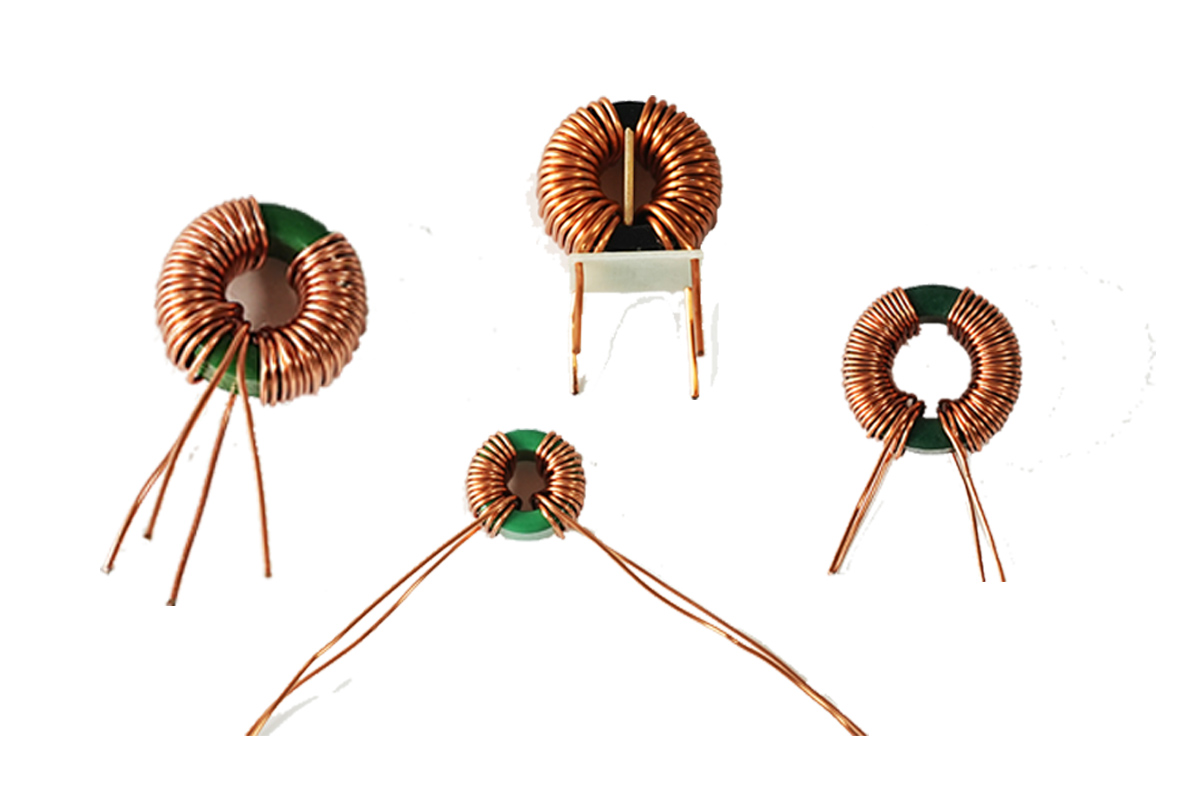

• Common Mode Chokes: Block common mode noise without affecting differential signals. Widely used in EMI filtering.

• Differential Mode Inductors: Suppress noise that occurs between two conductors. Often part of a differential mode filter in power electronics.

Many modern Winding Machines (like High Speed Winding Machines) are designed to produce common mode chokes and differential mode inductors with high precision and consistency.

Understanding the differences between common mode and differential mode is essential for designing robust, efficient, and compliant electronic systems. Each mode serves distinct functions:

• Common Mode = typically unwanted noise to be filtered

• Differential Mode = the desired signal transmission method

By choosing the correct components and design strategies, engineers can effectively manage noise, improve data integrity, and meet stringent EMC regulations.
