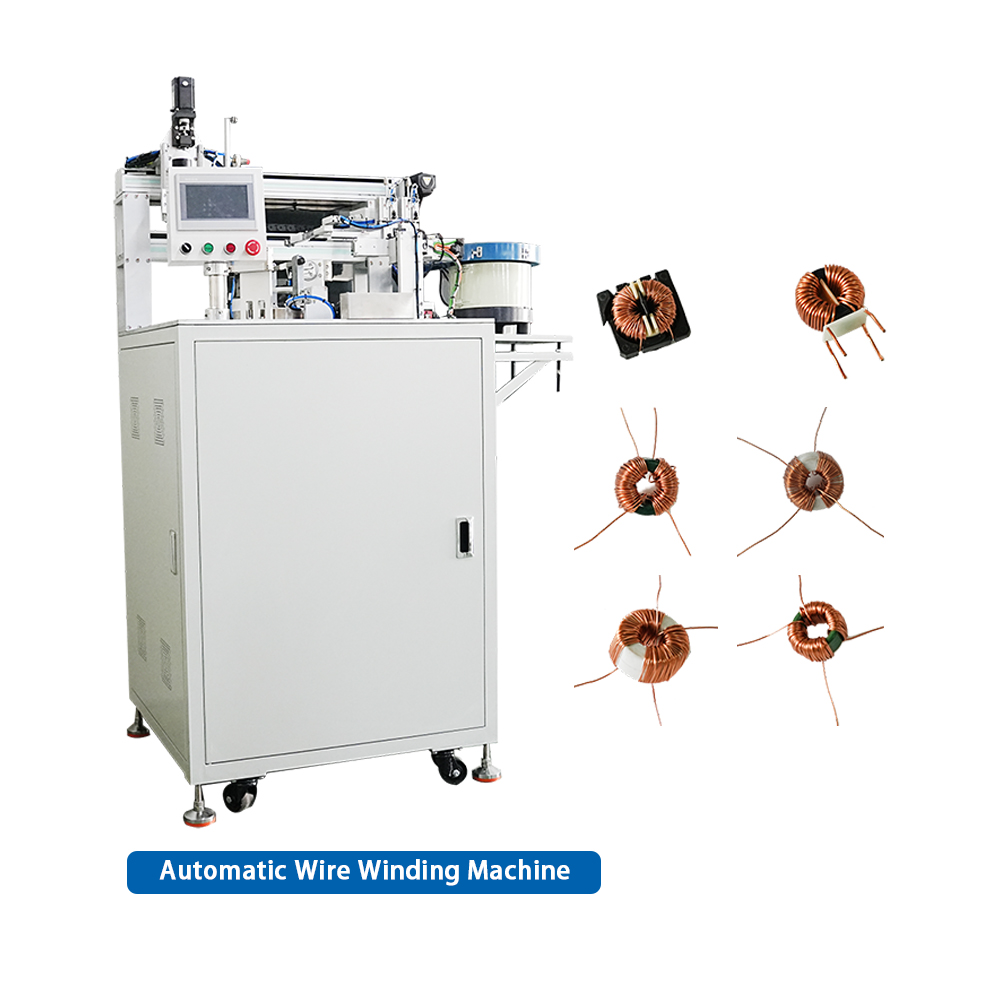

Automatic Wire Winding Machine

Automatic Wire Winding Machine: Features, Applications, and Maintenance

Introduction to Automatic Wire Winding Machines

An Automatic Wire Winding Machine is a sophisticated industrial device designed to wind wires, coils, or cables onto spools, bobbins, or other forms with high precision and efficiency. These machines are widely used in industries requiring consistent and reliable wire winding, such as electronics, automotive, and electrical manufacturing. Equipped with advanced control systems, they minimize human intervention while maximizing output quality.

Key Features with Technical Data

Modern Automatic Wire Winding Machines incorporate several advanced features:

• High-Speed Winding: Capable of winding speeds up to 3,000 RPM (revolutions per minute), ensuring rapid production cycles.

• Precision Tension Control: Maintains tension within ±0.1 N (Newton) to prevent wire breakage or deformation.

• Programmable Logic Controller (PLC): Allows customization of winding patterns with accuracy up to ±0.05 mm in layer alignment.

• Multi-Axis Synchronization: Some models feature 4-6 axis control for complex winding geometries.

• Automatic Wire Cutting and Feeding: Integrated systems can cut and feed wires with precision up to ±0.2 mm.

• Energy Efficiency: Consumes approximately 1.5-3 kW per hour, depending on the machine size and load.

• Touchscreen Interface: User-friendly HMI (Human-Machine Interface) with real-time monitoring of parameters like speed, tension, and wire length.

Applications of Automatic Wire Winding Machines

These machines are indispensable in various industries:

• Electronics Manufacturing: Used for winding coils in transformers, inductors, and solenoids. The precision ensures optimal electrical performance.

• Automotive Industry: Essential for producing ignition coils, alternator windings, and sensor coils with high durability.

• Energy Sector: Employed in the production of wind turbine generators and power transmission equipment.

• Medical Devices: Used for winding fine wires in MRI machines and other diagnostic equipment where precision is critical.

• Telecommunications: Facilitates the production of communication cables and fiber optic components.

• Aerospace: Ensures reliable winding for avionics and satellite components, meeting stringent quality standards.

Maintenance Practices for Automatic Wire Winding Machines

Proper maintenance is crucial to ensure longevity and consistent performance:

• Daily Checks: Inspect wire guides and tensioners for wear. Clean the machine surface to prevent dust accumulation, which can affect sensor accuracy.

• Lubrication: Apply manufacturer-recommended lubricants to moving parts such as bearings and shafts every 200-300 operating hours.

• Calibration: Recalibrate tension control and alignment systems monthly to maintain ±0.1 N tension accuracy.

• Software Updates: Regularly update the PLC and HMI firmware to ensure compatibility with new winding patterns and bug fixes.

• Component Replacement: Replace worn-out parts like brushes, belts, or rollers as per the manufacturer's schedule (typically every 1-2 years).

• Electrical Inspection: Check wiring and connections quarterly to prevent short circuits or power fluctuations.

Automatic Wire Winding Machines are vital for industries requiring high-precision wire winding. Their advanced features, such as PLC control and multi-axis synchronization, enable efficient production of complex components. Regular maintenance, including lubrication and calibration, ensures optimal performance and extends the machine's lifespan. By understanding their applications and upkeep, manufacturers can maximize productivity and minimize downtime.
