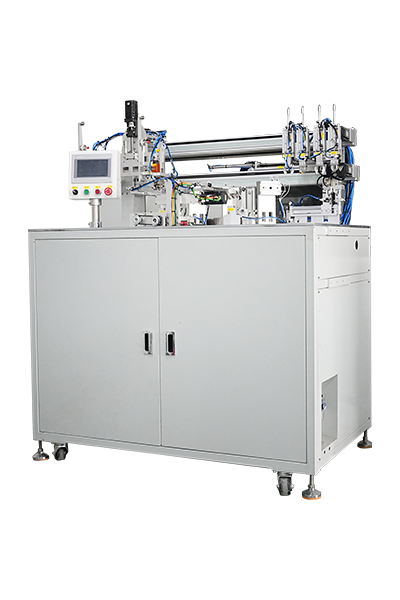

A Coil Winding Machine is a specialized electromechanical device designed to wind conductive wire, typically copper or aluminum, onto a core or bobbin to create an electromagnetic coil, inductor, or transformer winding. These machines are fundamental to the electrical manufacturing industry, transforming raw wire into precise, functional components that are essential for countless electronic and electrical devices. Modern coil winders have evolved from simple manual lathes to sophisticated, computer-numerically-controlled (CNC) systems that offer exceptional precision, repeatability, and efficiency. The core function involves rotating a mandrel (which holds the core) while a wire guide mechanism traverses back and forth to lay the wire in a specific, controlled pattern. The complexity of the winding pattern—whether it's simple random winding, precise layer winding, or complex orthocyclic patterns—dictates the required sophistication of the machine. The availability of various coil Winding Machines for sale caters to a wide spectrum of needs, from low-volume prototyping and research to high-speed, mass production environments.
Precision CNC Control:
Modern machines are equipped with multi-axis CNC systems capable of controlling rotational speed, traverse movement, and tension with exceptional accuracy. Typical positioning resolution for the traverse axis is ±0.01 mm, while rotational speed can be controlled within ±1 RPM, even at high speeds up to 12,000 RPM for certain spindles. This ensures consistent layering and eliminates gaps or overlaps in the windings.
Programmable Logic Controller (PLC) & HMI:
An industrial-grade PLC serves as the machine's brain, executing pre-programmed winding recipes. Operators interact via a Human-Machine Interface (HMI) touchscreen, typically 10 inches or larger, allowing for storage of hundreds of programs for different coil types. Parameters like number of turns, wire tension, layering sequence, and start/stop positions are easily input and modified.
Advanced Tension Control System:
Maintaining consistent wire tension is critical for coil quality. High-end machines feature closed-loop servo-controlled tensioners with a feedback mechanism, providing tension control within a range of 5 to 500 grams-force (gf) with an accuracy of ±2 gf. This prevents wire stretching, breakage, or loose winds that can compromise electrical performance.
Multi-Axis Traverse System:
The wire guide mechanism is often a servo-driven axis independent of the spindle. This allows for complex winding patterns. The traverse stroke can vary from 100 mm for small components to over 2000 mm for large transformers, with linear speeds matching the spindle's rotational velocity to achieve a precise winding pitch.
Wide Wire Compatibility:
These machines can handle a vast range of wire gauges, from ultra-fine wires used in sensors and microphones, as thin as 0.02 mm (AWG 50), to heavy, rectangular magnet wire for power transformers, with cross-sectional areas up to 50 mm². Quick-change fixtures and guides facilitate switching between wire sizes.
High-Speed Operation:
Production efficiency is paramount. Depending on the coil size and wire type, modern automatic winders can achieve spindle speeds exceeding 8,000 RPM, translating to a winding capacity of several thousand turns per minute, drastically reducing cycle times for high-volume orders.
Ancillary Automation:
For fully automated production cells, machines can be integrated with robotic arms for loading bobbins and unloading finished coils, vision systems for automated quality inspection, and laser marking systems for direct part marking (DPM), creating a seamless, lights-out manufacturing operation.
Automotive Industry:
Coil winders mass-produce ignition coils, solenoid valves, ABS sensor rings, and electric power steering (EPS) motor windings. These components demand extreme reliability and consistency, often using high-temperature enameled wire and requiring 100% automated electrical testing integration.
Consumer Electronics:
This is a high-volume application for small, precise coils found in smartphones (haptic feedback motors, charging coils), speakers, headphones, and miniature transformers for power adapters. Machines here prioritize speed and miniaturization capabilities.
Industrial Motors and Generators:
Manufacturing the stators and rotors for AC/DC motors, servo motors, and generators requires heavy-duty winding machines capable of handling large wire gauges and providing high torque at lower speeds to form tight, robust windings that can withstand vibration and high temperatures.
Power Distribution:
The production of transformers (from small PCB-mounted types to large distribution transformers) and current transformers (CTs) for energy metering is a primary application. These windings often require layer insulation and complex interleaving patterns, necessitating machines with sophisticated programming and auxiliary paper insertion features.
Medical Devices:
Manufacturing coils for MRI machines, implantable devices, and diagnostic equipment requires an ultra-clean environment and machines built with compatible materials. Precision is non-negotiable, as the electrical characteristics of these coils are critical to patient safety and diagnostic accuracy.
Aerospace and Defense:
Applications include actuators, radar systems, communication equipment, and navigation systems. Coils for these sectors must often meet stringent military specifications (MIL-SPEC), requiring traceability for all materials and validated winding processes that ensure performance under extreme conditions.
Proper maintenance is crucial for maximizing the lifespan, accuracy, and productivity of a coil winding machine. A comprehensive maintenance program includes daily, weekly, monthly, and annual tasks.
Daily Maintenance:
Before starting operations, visually inspect the machine for any loose components or foreign objects. Clean the work area, wire guides, and tensioner assemblies using compressed air or a soft brush to remove dust and wire fragments. Check the wire tension setting against a calibrated tension meter to ensure accuracy. Listen for any unusual noises during operation that might indicate a developing problem.
Weekly/Bi-Weekly Maintenance:
Lubricate all guide rods, linear rails, and lead screws as specified by the manufacturer, using the recommended grease or oil. Wipe away any old lubricant and debris first. Inspect ceramic and diamond wire guides for grooves or cracks that could damage the wire enamel; replace them if necessary. Check all pneumatic fittings and lines for leaks if the machine uses pneumatic tensioners or actuators.
Monthly/Quarterly Maintenance:
Perform a more thorough inspection of all mechanical components. Check the belt tension and condition on spindle and traverse drives; adjust or replace if signs of wear are evident. Verify the alignment of the spindle and traverse system. Inspect electrical connections for tightness. Back up all machine programs and parameters to an external storage device.
Annual Maintenance:
It is highly recommended to schedule a full preventive maintenance service with the machine's manufacturer or a certified technician annually. This service should include a complete calibration of all axes, spindle runout verification, tension system calibration against a NIST-traceable standard, and a comprehensive check of the PLC, drives, and servo motors. This ensures the machine continues to operate within its original specifications.
General Best Practices:
Always use the machine within its specified operational limits (max RPM, wire gauge capacity). Keep a maintenance logbook to record all inspections, services, and parts replacements. Train operators not only on how to run the machine but also on these basic maintenance procedures to foster a culture of ownership and care for the equipment.
