Motor Winding Machine

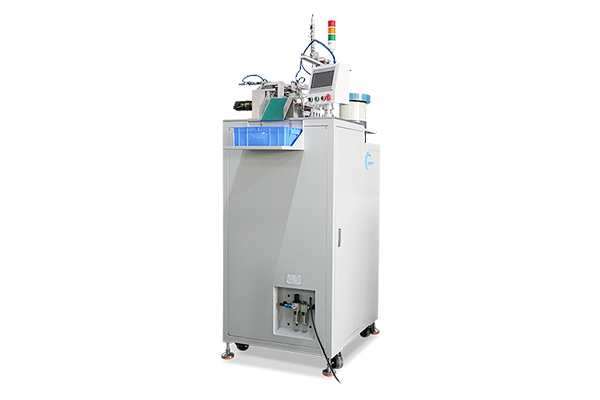

A Motor Winding Machine is a specialized electromechanical apparatus designed for the precise and efficient insertion of insulated copper or aluminum wire (magnet wire) into the stator or rotor slots of electric motors and generators. Its core function is to automate the highly repetitive and technically demanding process of creating the electromagnetic coils that are fundamental to motor operation. Modern machines are sophisticated systems that integrate mechanical components, precision servo motors, programmable logic controllers (PLCs), and human-machine interfaces (HMIs) to achieve high levels of accuracy, repeatability, and productivity. The Automation of this process is critical for mass production, as it ensures consistent winding tension, precise layering, and correct wire placement, which directly impacts the motor's performance characteristics such as torque, efficiency, and operational noise.

Key Characteristics with Professional Data

The performance and capability of a motor Winding Machine are defined by several key technical parameters:

Winding Speed: High-speed models can achieve rotational speeds exceeding 1,200 RPM for the flyer or spindle, translating to the placement of several meters of wire per second. This speed is crucial for high-volume manufacturing lines.

Tension Control: Precision is paramount, with modern machines employing closed-loop servo-controlled tensioners that maintain wire tension within a range of ±2% to ±5% of the set value, often between 10 to 500 grams, depending on the wire gauge. This prevents wire stretching, insulation damage, and ensures consistent coil packing.

Accuracy and Repeatability: The positioning accuracy of the wire guide or traversing mechanism is typically within ±0.01 mm. This extreme precision ensures that each turn of wire is placed exactly as programmed, which is vital for maintaining the designed electromagnetic properties and avoiding inter-turn shorts.

Programmability and Flexibility: Advanced PLC systems can store hundreds of winding programs, allowing for quick changeovers between different motor models. Parameters such as number of turns (from a few dozen to several thousand), wire pitch, layering pattern, and direction can be easily configured.

Wire Handling Capacity: Machines are designed to accommodate a wide range of wire diameters, typically from ultra-fine 0.05 mm (50 AWG) up to heavy-duty 5.0 mm (4 AWG) or larger, with corresponding adjustments in tension and guiding mechanisms.

Application Scenarios

Motor winding machines are indispensable in industries where electric motors and electromagnetic devices are manufactured. Their applications are diverse:

Automotive Industry: Mass production of starters, alternators, power steering motors, cooling fan motors, and, most significantly, the stators and rotors for electric vehicle (EV) traction motors. The high precision and speed are essential for meeting the vast scale and rigorous quality standards of automotive manufacturing.

Industrial Motors: Manufacturing of AC induction motors, servo motors, and brushless DC (BLDC) motors used in industrial automation, robotics, CNC machinery, and pumps. These applications often require complex winding patterns for optimal torque and efficiency.

Consumer Appliances: Production of motors for washing machines, refrigerators, air conditioners, vacuum cleaners, and power tools. The machines ensure the reliability and low acoustic noise required for consumer products.

Aerospace and Defense: Manufacturing of highly reliable, lightweight motors and generators for aircraft systems, satellites, and military equipment. The winding process must adhere to extreme quality standards and often involves specialized wires with high-temperature insulation.

Energy Sector: Windings for generators in power plants, as well as for small-scale turbines and alternators in renewable energy systems.

Repair and Rewind Shops: While often smaller and semi-automatic, winding machines are used to rewind and repair burned-out or damaged stators and rotors, returning industrial motors to service.

Maintenance Procedures

Proper maintenance is critical to ensuring the longevity, accuracy, and reliability of a motor winding machine. A comprehensive maintenance regimen includes the following procedures:

1. Daily Maintenance:

Visual Inspection: Check for any visible signs of wear, damage, or loose components on the wire guides, tensioners, spool holders, and spindle mechanism.

Cleaning: Use compressed air or a soft brush to remove dust, wire fragments, and insulation particles from the machine's work area, guides, and sensors. Accumulated debris can interfere with sensitive mechanics and electronics.

Lubrication (as specified): Some machines require daily oiling of specific guide rails or bearings. Always follow the manufacturer's manual regarding lubrication points, type of lubricant, and frequency.

Tensioner Check: Verify that the tensioner arms move smoothly and that the braking surface is clean.

2. Weekly/Bi-Weekly Maintenance:

Detailed Mechanical Inspection: Tighten any bolts or fasteners that may have vibrated loose. Inspect belts for wear and proper tension.

Sensor Calibration Check: Verify the operation of optical sensors or encoders that monitor wire breakage, spindle position, and traverse movement.

Wire Guide Inspection: Examine ceramic or diamond-coated wire guides for grooves or cracks that could damage the wire insulation. Replace them if any wear is detected.

3. Monthly/Quarterly Maintenance:

Preventive Parts Replacement: Proactively replace wear-prone parts such as tensioner felts, brake pads, and guide tubes according to the manufacturer's recommended schedule.

Servo System Check: With the machine powered down and locked out, check servo motor connections and inspect for any unusual noises or vibrations during a test run.

Calibration: Perform a full calibration of the tension control system using a calibrated tension meter to ensure readings are accurate. Recalibrate the traverse positioning system if necessary.

4. Annual Maintenance:

Comprehensive Overhaul: This should be performed by a qualified technician. It involves a thorough inspection of all mechanical and electrical systems, including bearing replacements, checking alignment of shafts and spindles, and updating control system firmware.

Electrical System Inspection: Check all electrical connections, terminals, and contactors for tightness and signs of arcing or overheating. Measure the insulation resistance of motors.

General Best Practices: Always use the correct wire type and size for which the machine is configured. Keep a detailed maintenance logbook to track all performed activities, parts replacements, and any occurring faults. This historical data is invaluable for troubleshooting and predicting future maintenance needs. Finally, ensure all operators are properly trained not only in machine operation but also in basic daily maintenance and safety procedures.
